Product Parameters

Accuracy

positioning accuracy:	0.01 mm
Repeatability:	0.005 mm

Workbench

working desk size:	1000*900mm
T-slot dimensions:	5T-18-180 mm
Maximum load:	1000 kg

Processing range

X/Y/Z axis travel:	1000/900/400 mm
Gantry width:	1110 mm
Beam to workbench:	650 mm
Spindle nose to worktable:	155-555 mm
Door opening width:	1040 mm

Feed

Maximum feed speed G00:	15 m/min
Maximum processing speed G01:	10 m/min
X/Y/Z axis motor power:	1300W/1300W/1300W(/1800W BT40)

Spindle

Spindle motor power:	8 kW
Maximum spindle speed:	15000 rpm
Tool holder:	ER32(φ3.17-φ20)
Spindle diameter:	140 mm

Common

Power supply and total capacity:	3P/380V/50Hz/20KVA
Machine weight:	5600 kg
aspect:	290022402700mm

The main components

Controller:	Syntec 21MA/Taiwan
AC servo motor (driver):	Yaskawa/Japan
Spindle inverter:	Innovation/China
Linear Guides:	45 Hiwin, PMI/Taiwan
Ball Screw:	4010 Hiwin, PMI/Taiwan
Electronic handwheel:	EHDW-BA5S-1 Future/Taiwan

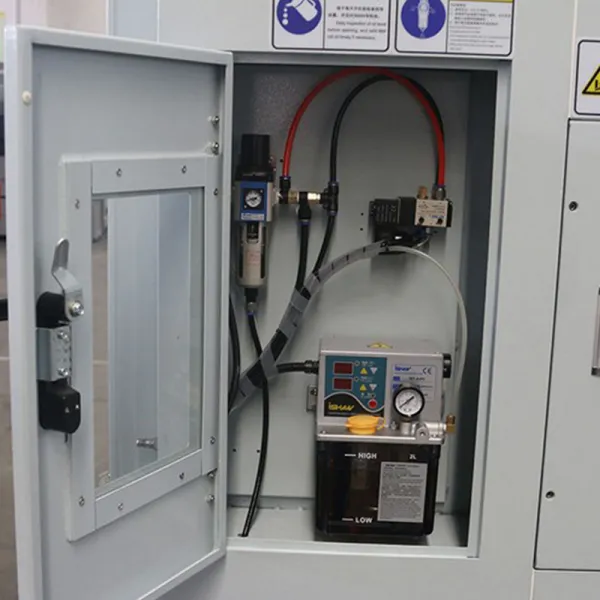

Lubrication system:	YET-A2P2 ISHAN/Taiwan
Oil Cooler:	Parsonshal/China
air conditioner:	Parsonshal/China
Pneumatic system:	AirTac/Taiwan
Chip conveyor:	—
Water tank capacity:	177L
Water pump power:	400W
ATC Type:	Arm Type
Air traffic control capabilities:	24 items

Close

Product Details

Product Introduction

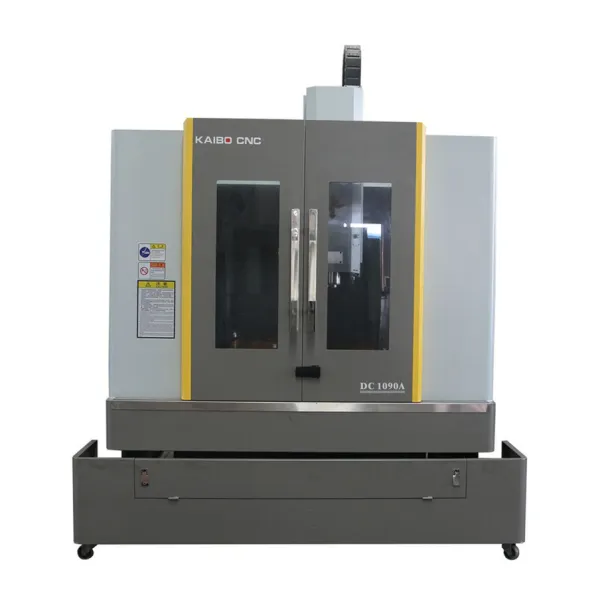

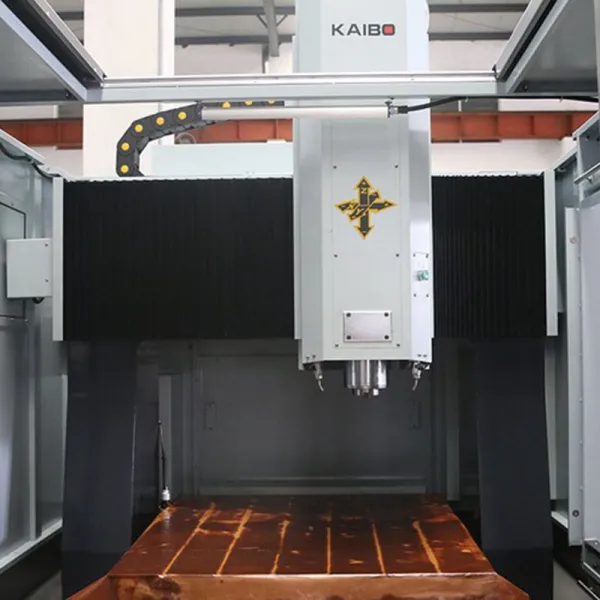

The BT40 spindle wheel hub CNC milling machine DC1090A is a medium-sized double-column CNC milling machine designed for product engraving and mold processing. It has strong stability, high precision, and strong spindle capacity, comparable to traditional vertical machining centers.

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134822/cnc-milling-machine-for-wheels-with-bt40-spindle-dc1090a-4.jpg

Advantages and features

1. It combines the performance characteristics of large and small gantry milling machines.
2. High precision and good rigidity.
3. It can be equipped with 4th and 5th axis rotary tables to adapt to various processing methods.
4. Equipped with powerful mechanical spindle (ER32, 8kw, 18000rpm), optional BT40/7.5KW/12000rpm.
5. The working table size is 1000X900mm, very suitable for tire mold manufacturing, car rims, wheels and auto parts.
6. Adopt high quality C-grade HIWIN or PMI/Taiwan ball screw and P-grade HIWIN or PMI/Taiwan linear guide.

Application Scenario

1. Tire mold production
2. Car rims
3. Wheels
4. Auto parts
5. Product engraving and mold processing
