Home/ Products / 5-axis Sole Mold Milling Machine DC6060A

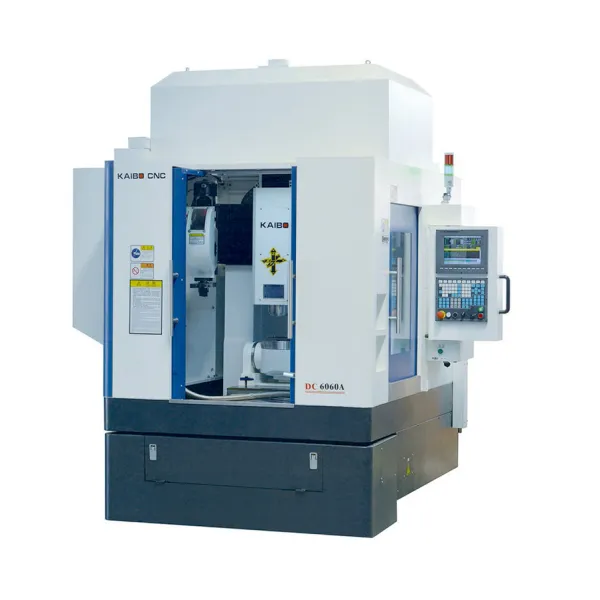

5-axis Sole Mold Milling Machine DC6060A
The DC6060A 5-axis sole mold milling machine offers unmatched accuracy and efficiency, designed specifically for shoe mold manufacturers to enhance production capabilities and streamline processes.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135623/4产品5-axis-shoe-last-cnc-milling-machine-dc6060a-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-6.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-5.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-4.jpg
Recommended Products
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134729/22产品high-speed-cnc-milling-machine-for-metal-gj1317-1.png
High Speed Metal CNC Milling Machine GJ1317
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135525/1产品dry-vacuum-graphite-machining-center-dc6060g-1.png
Wet Graphite Machining Center DC6060G
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134610/25产品5axis-simultaneous-cnc-machining-center-fh1160l-1.png
Five-axis CNC Machining Center FH1160L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134906/19产品heavy-duty-machining-center-with-fanuc-controller-gv2030-1.png
Heavy-duty machining center GV2030 equipped with Fanuc controller
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135402/5产品5-axis-shoe-last-cnc-milling-machine-dc6070-1.png
5-axis Shoe Last CNC Milling Machine DC6070
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135019/15产品high-accuracy-cnc-milling-machine-for-auto-parts-procesing-dc1520-1.png
High-precision CNC milling machine DC1520 for automotive parts processing
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134702/23产品high-accuracy-cnc-milling-machine-for-stainless-steel-gj1417-1.png
High Precision Stainless Steel CNC Milling Machine GJ1417
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820113751/28.png
Large Stroke VMC With Mitsubishi Controller Fh1890L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134505/27产品cnc-vertical--machining-center-with-gear-box-fh1580l-1.png
CNC Vertical Machining Center With Gearbox FH1580L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135436/4产品5-axis-shoe-last-cnc-milling-machine-dc6060a-1.png
5-axis Shoe Last CNC Milling Machine DC6060A
Product Parameters
Accuracy
positioning accuracy: positioning accuracy
Repeatability: 0.005 mm
See more
Workbench
working desk size: 610*600mm
T-slot dimensions: 5T-16-125 mm
Maximum load: 300 kg
Automatic Fixture
Turntable diameter: 225 mm
Rotation center height: 135 mm
Rotation range A axis -120°~120°: Depends on the workpiece
Rotation range C axis -120°~120°: Depends on the workpiece
drive: AC servo motor
Processing range
X/Y/Z axis travel: 600/600/260 mm
Gantry width: 700 mm
Beam to workbench: 700 mm
Spindle nose to worktable: 330-590 mm
Feed
Maximum feed speed G00: 12m/min
Maximum processing speed G01: 8m/min
X/Y/Z axis motor power: 850W/850W/850W

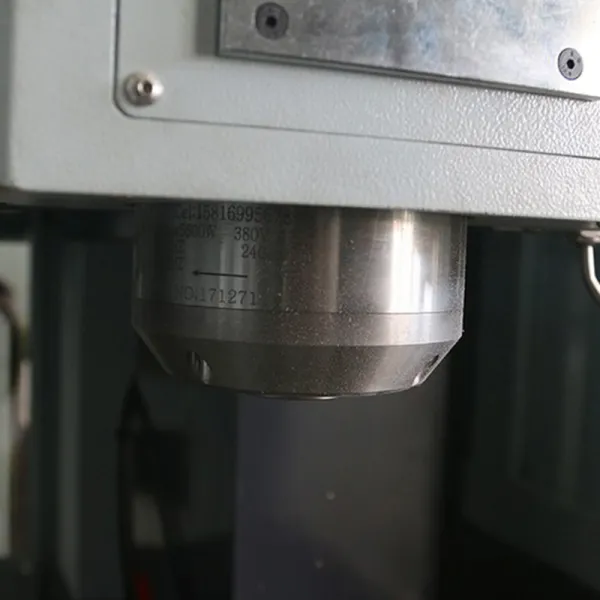

Spindle
Spindle motor power: 5.5 kW
Maximum spindle speed: 24000 rpm
Tool holder: BT30
Tool magazine
ATC Type: Arm Type
Air traffic control capabilities: 16 items
Common
Power supply and total capacity: 3P/380V/50Hz/12KVA
Machine weight: 4500 kg
aspect: 2200*1800*2200mm
The main components

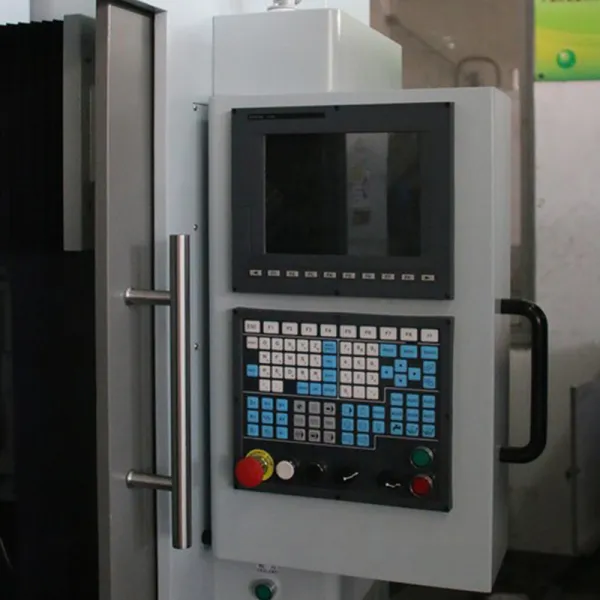

Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 30 Hiwin, PMI/Taiwan
Ball Screw: 2810 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Parsonshal/China
Close
Product Details
Product Introduction
The 5-axis sole mold milling machine DC6060A is designed for shoe mold manufacturers. It is based on the CNC milling machine DC6060A and is equipped with a rotary table designed specifically for shoe mold processing. This machine is cost-effective and user-friendly, and is a highly demanded model in the shoe mold industry.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-5.jpg
Advantages and features

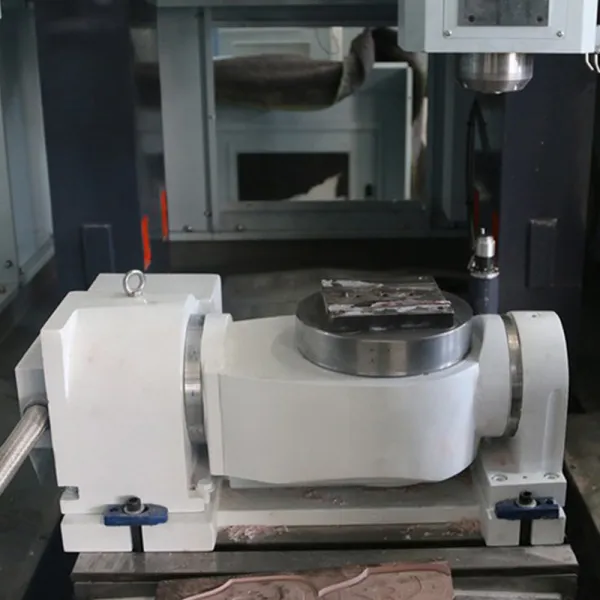

1. The rotary table is designed with "harmonic gear type" to maintain accuracy for a long time.
2. The KAIBO rotary table has its own magnetic disk, which can clamp the workpiece without any fixture, improving convenience and production efficiency.
3. Convenient for 5-axis beginners.
4. High accuracy.
5. Strong rigidity.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-6.jpg
Application Scenario
1. Shoe mold industry.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807104654/5-axis-sole-mold-milling-machine-dc6060a-4.jpg
Ordering Information
Custom Request
Our products support customization!
Packing and shipping
Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
Payment method
COMM
COMM
L/C
L/C
T/T
T/T
A/P
A/P
O/A
O/A
D/P
D/P
D/A
D/A
Refunds
If there is any problem with the product, please contact us at the first time.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/安全生产标准化三级企业.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001质量管理体系认证证书%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001Quality%20management%20system%20certificate%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO45001职业健康安全管理体系认证证书.jpg
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Tel
+86-15805747758
Email
[email protected]
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Call Now
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
ER25/5.5kw/24000rpm electric spindle NBT30/5.5kw/24000-30000rpm electric spindle NBT30/7.5kw/24000-30000rpm electric spindle HSK E40/5.5-7.5kw/30000rpm electric spindle More spindles
Tool magazine type
Straight tool magazine (6 pieces) Arm type tool magazine (20 pieces) Umbrella tool magazine (10 pieces) Umbrella tool magazine (14 pieces)
