Home/ Products / High Accuracy CNC Milling Machine

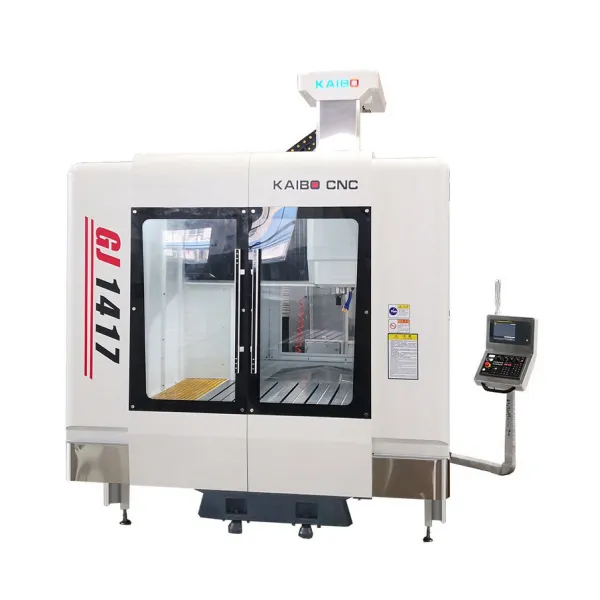

High Accuracy CNC Milling Machine

The GJ1417 High Accuracy CNC Milling Machine delivers exceptional precision and productivity, featuring advanced options like high-speed spindle and multiple axis configurations for the most demanding machining tasks.

Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China

 

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134702/23产品high-accuracy-cnc-milling-machine-for-stainless-steel-gj1417-1.png

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807143250/high-accuracy-cnc-milling-machine-for-stainless-steel-gj1417-1.jpg

Recommended Products

Product Parameters

Accuracy

positioning accuracy:	0.01 mm
Repeatability:	0.008 mm

Workbench

working desk size:	1700*1400mm
T-slot dimensions:	7T-18-190 mm
Maximum load:	3000 kg

Processing range

X/Y/Z axis travel:	1400/1700/720 mm
Spindle nose to worktable:	140-860 mm

Feed

Maximum feed speed G00:	20 m/min
Maximum processing speed G01:	8m/min
X/Y/Z axis motor power:	Bis40/2000*2+bis40B/2000

Spindle

Spindle motor power:	αilP40-18.5KW
Maximum spindle speed:	15000 rpm
Tool holder:	HSK63
Spindle diameter:	120

Common

Power supply and total capacity:	3P/380V/50Hz/30KVA
Machine weight:	17000 kg
aspect:	460046003200mm

The main components

Controller:	Fanuc/Japan 0i-MF
AC servo motor (driver):	FANUC/Japan
Spindle inverter:	FANUC/Japan
Linear Guides:	Hiwin, PMI/Taiwan (45/45/45) 4 sliders on X axis, 6 sliders on Y and Z axis
Ball Screw:	Hiwin, PMI/Taiwan (X, Y axis 5010; Z axis 4010)
Electronic handwheel:	EHDW-BA5S-1 Future/Taiwan
Lubrication system:	YET-A2P2 ISHAN/Taiwan
Oil Cooler:	Parsonshal/China
air conditioner:	EA-6AP Parsonsall/China
Chip conveyor:	Internal thread type

Tool magazine (optional)

ATC Type:	Arm Type
Air traffic control capabilities:	24 items

Product Details

Product Introduction

High Precision Stainless Steel CNC Milling Machine GJ1417 is a high performance gantry machining center designed for the most demanding, difficult and ultra-precision machining applications.

Advantages and features

1. Large working area and high precision.
2. Ball screw transmission is adopted on both sides to ensure high quality precision.
3. Optional glass ruler with high positioning accuracy.
4.HSK high-speed spindle improves production efficiency.
5. Controller options: FANUC, SIEMENS or MITSUBISHI.
6. Use linear guide rails to enhance rigidity and precision.
7. Optional 3/4/5 axis configuration.
8. Optional HPC function.
9. Automatic tool changer option.

Application Scenario

1. Hypervisor
2. CNC gantry milling machine
3. Mould making machine
4. Graphite machine
5. Drum machine
6. Plastic mold
7. Shoe Model
8. Auto parts
9. Graphite
10. Roller
11. Hardware

Ordering Information

Custom Request

Our products support customization!

Packing and shipping

Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
