Home/ Products / Four-axis CNC milling machine DC8070A

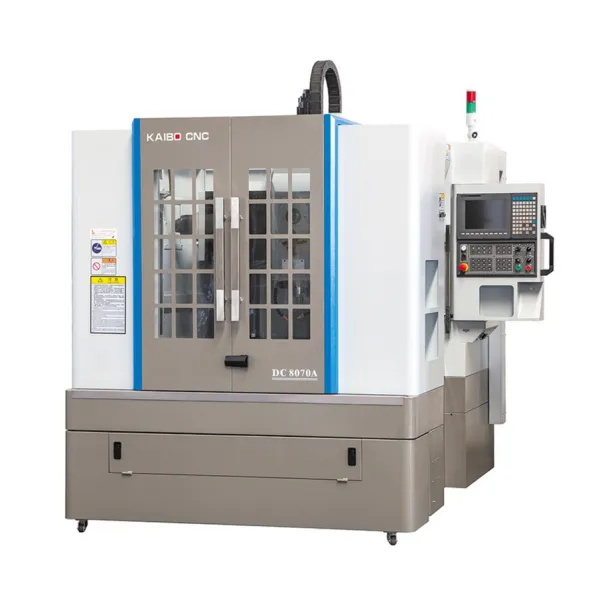

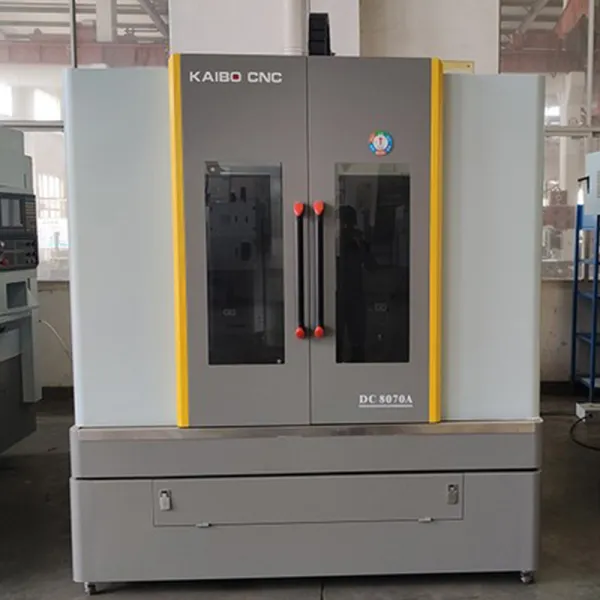

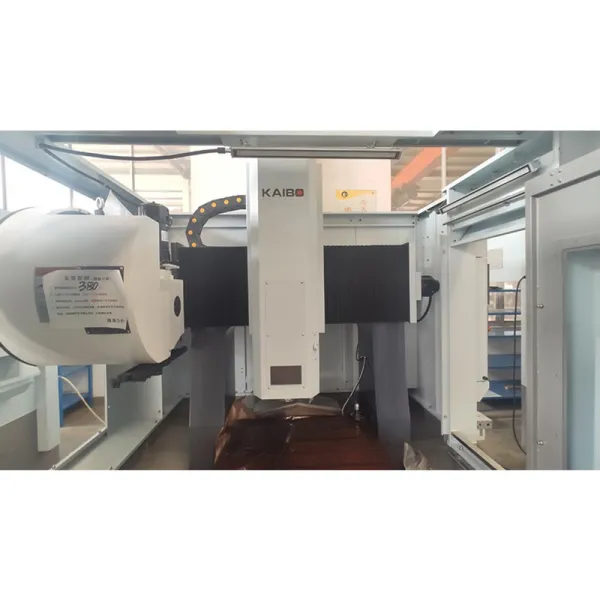

Four-axis CNC milling machine DC8070A
The DC8070A four-axis CNC milling machine combines high precision, high rigidity and high-speed processing capabilities. It is widely used in various processing needs such as stamping dies, automotive parts dies, etc. It is the only choice for efficient manufacturing.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135230/10产品4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-5.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-4.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-6.jpg
Recommended Products
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134505/27产品cnc-vertical--machining-center-with-gear-box-fh1580l-1.png
CNC Vertical Machining Center With Gearbox FH1580L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820154020/lQLPJxXDaY5R9MPNBU7NA4iwZej6DfoS8qkGrUkZysT8AQ_904_1358.png
Gantry CNC Milling Machine For Metal Processing - Dc2025
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135019/15产品high-accuracy-cnc-milling-machine-for-auto-parts-procesing-dc1520-1.png
High-precision CNC milling machine DC1520 for automotive parts processing
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820113751/28.png
Large Stroke VMC With Mitsubishi Controller Fh1890L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820153921/lQLPKITAZWhJ9cPNBU7NA4iwcv0TLFk0wyUGrUkZysT8AA_904_1358.png
Belt-type Spindle Vertical CNC Milling Machine FH1370L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134809/21产品high-accuracy-high-speed-cnc-milling-machine-gj8070-1.png
High-precision And High-speed CNC Milling Machine GJ8070
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134610/25产品5axis-simultaneous-cnc-machining-center-fh1160l-1.png
Five-axis CNC Machining Center FH1160L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134641/24产品5-axis-vertical-machining-center-with-rtcp-function-fh855l-1.png
5-axis Vertical Machining Center FH855L With RTCP Function
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134906/19产品heavy-duty-machining-center-with-fanuc-controller-gv2030-1.png
Heavy-duty machining center GV2030 equipped with Fanuc controller
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134729/22产品high-speed-cnc-milling-machine-for-metal-gj1317-1.png
High Speed Metal CNC Milling Machine GJ1317
Product Parameters
Accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more
Workbench
working desk size: 800*700mm
T-slot dimensions: 6T-16-120 mm
Maximum load: 800 kg
Processing range
X/Y/Z axis travel: 800/700/380 mm
Gantry width: 900 mm
Beam to workbench: 550 mm
Spindle nose to worktable: 40-420 mm
Door opening width: 830 mm
Feed
Maximum feed speed G00: 15 m/min
Maximum processing speed G01: 10 m/min
X/Y/Z axis motor power: 1300W/1300W/1300W
Spindle
Spindle motor power: 8 kW
Maximum spindle speed: 18000 rpm
Tool holder: ER32(φ3.17-φ20)
Spindle diameter: 140 mm
Common
Power supply and total capacity: 3P/380V/50Hz/15KVA
Machine weight: 4600 kg
aspect: 2450*2030*2460mm
The main components
Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 35-45-35 Hiwin, PMI/Taiwan
Ball Screw: 3210 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Parsonshal/China
air conditioner: Opt.Parsonthor/China
Pneumatic system: AirTac/Taiwan
Chip conveyor: —
Water tank capacity: 148L
Water pump power: 400W
Tool magazine (optional)
ATC Type: Arm Type
Air traffic control capabilities: 24 items
Close
Product Details
Product Introduction

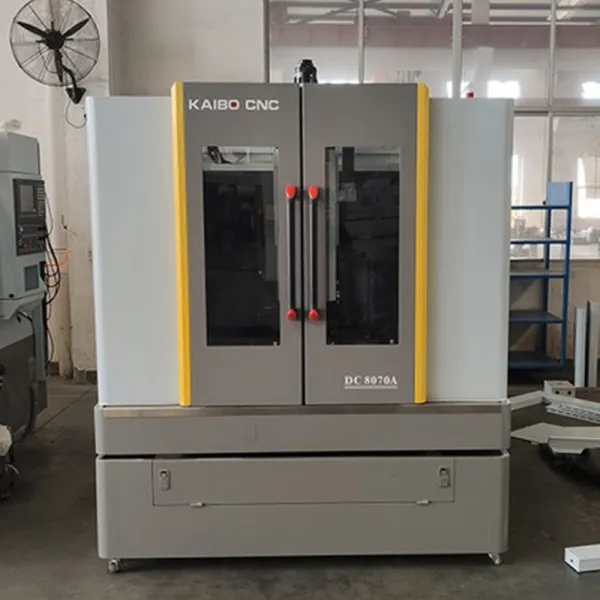

The DC8070A four-axis CNC milling machine equipped with an automatic tool changer is a small to medium-sized double-column machining center. It is famous for its high-speed machining, high precision and high rigidity.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-6.jpg

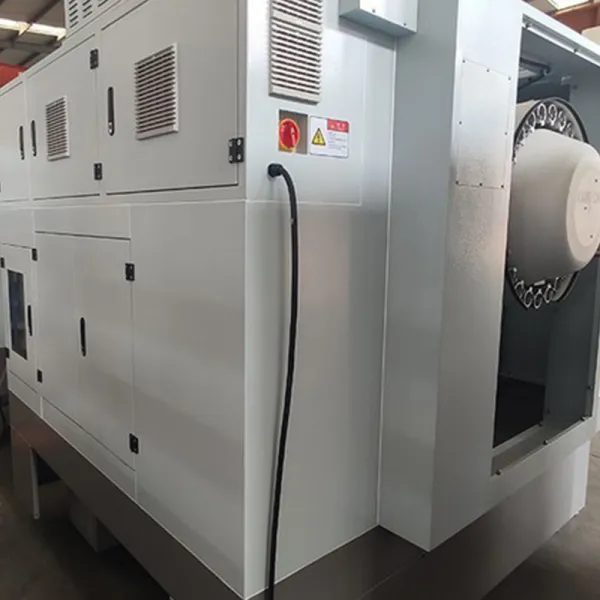

Advantages and features
1. Equipped with ER32 spindle.
2. Different spindle options: BT30/24000rpm and BT40/12000rpm.
3. Increase the size of guide rails and ball screws.
4. High-precision needle roller linear guide with higher rigidity.
5. New generation control system and operating platform.
6. Suitable for milling with large and small tools.
7. Widely used in stamping dies and various manufacturing applications.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-5.jpg

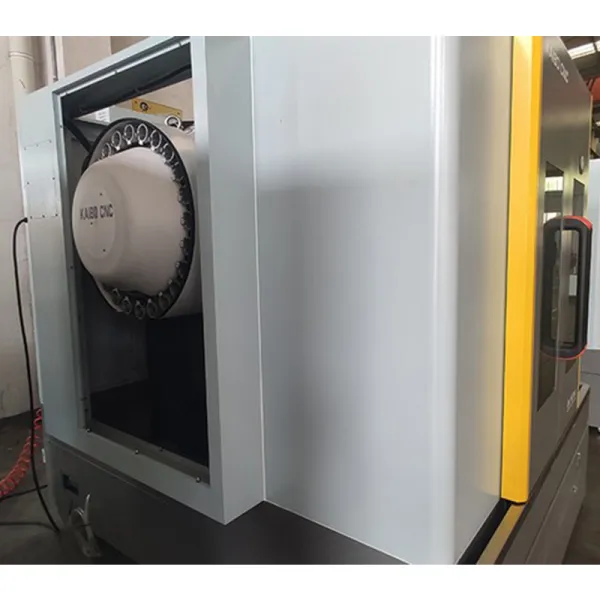

Application Scenario
1. Stamping die.
2. Gas appliance moulds.
3. Auto parts molds.
4. Valve manufacturing.
5.Different types of tire molds.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134632/4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-4.jpg
Ordering Information
Custom Request
Our products support customization!
Packing and shipping
Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
Payment method
COMM
COMM
L/C
L/C
T/T
T/T
A/P
A/P
O/A
O/A
D/P
D/P
D/A
D/A
Refunds
If there is any problem with the product, please contact us at the first time.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/安全生产标准化三级企业.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001质量管理体系认证证书%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001Quality%20management%20system%20certificate%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO45001职业健康安全管理体系认证证书.jpg
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Tel
+86-15805747758
Email
[email protected]
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Call Now
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
ER32/8kw/18000rpm electric spindle NBT30/5.5kw/24000-30000rpm electric spindle NBT30/7.5kw/24000-30000rpm electric spindle HSK E40/5.5-7.5kw/30000rpm electric spindle BT40/7.5kw/120000rpm mechanical spindle HSK A63/7.5kw/24000rpm electric spindle More spindles
Tool magazine type
Straight tool magazine (8 pieces) Arm type tool magazine (20 pieces) Arm type tool magazine (24 pieces)
