Home/ Products / GV2040 CNC Milling Machine

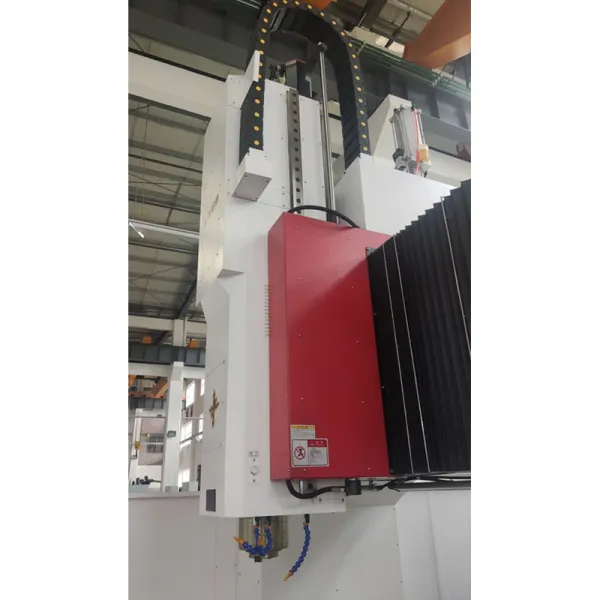

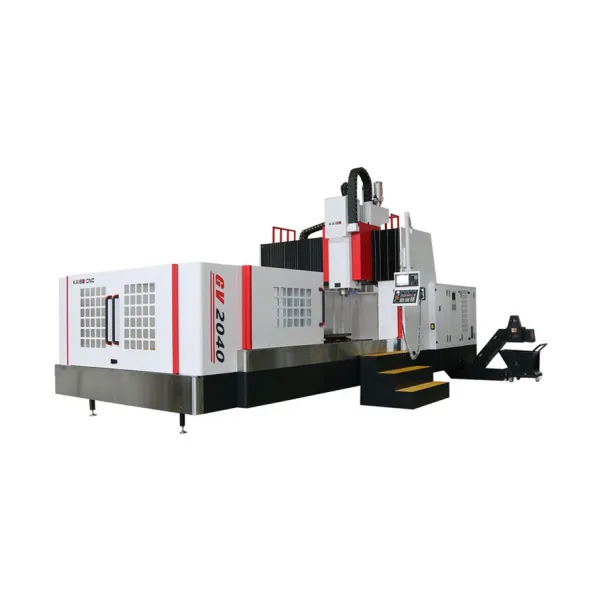

GV2040 CNC Milling Machine

Experience the powerful and precise GV2040 CNC milling machine, engineered for an array of industrial applications from automotive to aerospace and beyond, ensuring superior performance and reliability.

Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China

 

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134837/20产品big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-1.png

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140841/big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-3.jpg

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822095808/1724291896901_big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-2.png

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822095753/1724291884434_big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-5.png

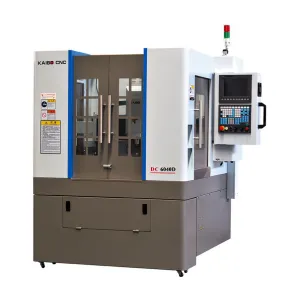

Recommended Products

Product Parameters

Accuracy

positioning accuracy:	0.01 mm
Repeatability:	0.005 mm

Workbench

working desk size:	1800*4000mm
T-slot dimensions:	8T-18-180 mm
weight capacity:	10000kg

Processing range

X/Y/Z axis travel:	2000/4000/1000 mm
Gantry width:	2010 mm
Beam to workbench:	1200 mm
Distance from spindle nose to worktable:	150-1150 mm
Door opening width:	-

Feed

Maximum feed speed G00:	20 m/min
Maximum working speed G01:	8m/min
X/Y/Z axis motor power:	αiF30/αiF40/αiF30

Spindle

Spindle motor power:	αilP40-18.5KW
Maximum spindle speed:	6000 rpm
Tool holder:	BT50
Spindle diameter:	-

Common

Power supply and total capacity:	3P/380V/50Hz/30KVA
Machine weight:	44000 kg
aspect:	1100049004850mm

Main components

Controller:	Fanuc/Japan0i-MF
AC servo motor (driver):	FANUC/Japan
Spindle inverter:	FANUC/Japan
Linear Guides:	55(6,8,12)Hiwin,PMI/Taiwan
Ball Screw:	6310/6310/5015Hiwin,PMI/Taiwan
Electronic handwheel:	EHDW-BA5S-1 Future/Taiwan
Lubrication system:	YET-A2P2ISHAN/Taiwan
Oil coolant cooler:	Parsonshal/China
air conditioner:	EA-6AParsonthor/China
Pneumatic system:	AirTac/Taiwan
Chip conveyor:	Internal thread type
Water tank capacity:	-
Water pump power:	1000W

Tool library (optional)

ATC Type:	Arm Type
Air traffic control capabilities:	24 items

Product Details

Product Introduction

The large worktable heavy-duty CNC milling machine GV2040 is a double-column, large-stroke CNC milling machine, which is widely used in automotive parts, aerospace, molds, engines, home appliances and other fields. It can also be used as a supporting production machine for some factories.

Advantages and features

1. The control system and servo motor adopt FANUC (Siemens is optional).
2. One-piece casting structure, better rigidity, more lasting stability and excellent shock absorption performance.
3. With Z-axis balancing function, it can balance the forces, improve performance and limit the travel speed in the Z direction.
4.Support multiple axis configurations (3/4/5 axes optional).
5. Optional HPC function and automatic tool changer are available to enhance functionality.

Application Scenario

1. Auto parts manufacturing
2. Aerospace Industry
3. Mold making
4. Engine parts processing
5. Household appliances production

Ordering Information

Custom Request

Our products support customization!

Packing and shipping

Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;

Payment method

COMM

L/C

T/T

A/P

O/A

D/P

D/A

Refunds

If there is any problem with the product, please contact us at the first time.
