Home/ Products / DC6060A High Precision CNC Milling Machine

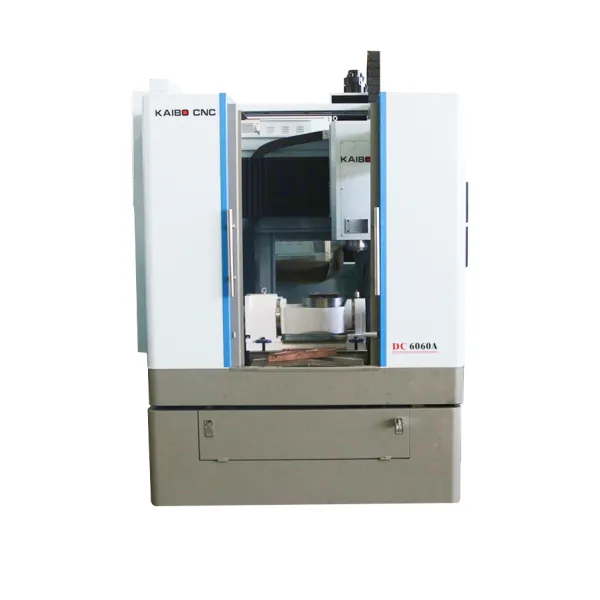

DC6060A High Precision CNC Milling Machine
DC6060A is a small high-precision double-column vertical CNC milling machine with excellent rigidity and a variety of optional functions. It is particularly suitable for aluminum molds and steel molds, making your mold processing more accurate and efficient.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820153956/lQLPJxEb-WmqFMPNBU7NA4iwVikvY6CgmK8GrUkZyfl5AA_904_1358.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-2.jpg

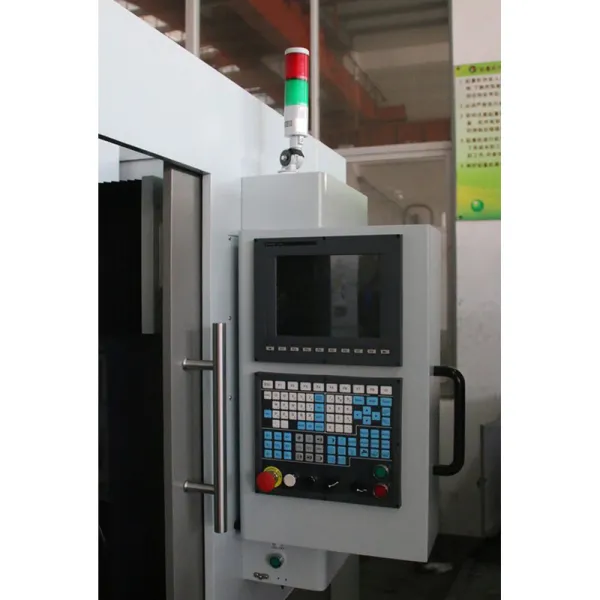

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-4.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-5.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-6.jpg
Recommended Products
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134906/19产品heavy-duty-machining-center-with-fanuc-controller-gv2030-1.png
Heavy-duty machining center GV2030 equipped with Fanuc controller
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134934/18产品double-column-large-cnc-milling-machine-gv1625-1.png
Double Column Large CNC Milling Machine GV1625
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135525/1产品dry-vacuum-graphite-machining-center-dc6060g-1.png
Wet Graphite Machining Center DC6060G
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820153921/lQLPKITAZWhJ9cPNBU7NA4iwcv0TLFk0wyUGrUkZysT8AA_904_1358.png
Belt-type Spindle Vertical CNC Milling Machine FH1370L
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135211/11产品cnc-milling-machine-for-wheels-with-bt40-spindle-dc1090a-1.png
Wheel CNC Milling Machine DC1090A With BT40 Spindle
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134809/21产品high-accuracy-high-speed-cnc-milling-machine-gj8070-1.png
High-precision And High-speed CNC Milling Machine GJ8070
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134729/22产品high-speed-cnc-milling-machine-for-metal-gj1317-1.png
High Speed Metal CNC Milling Machine GJ1317
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820134641/24产品5-axis-vertical-machining-center-with-rtcp-function-fh855l-1.png
5-axis Vertical Machining Center FH855L With RTCP Function
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135230/10产品4-axis-cnc-milling-machine-with-automatic-tool-changer-dc8070a-1.png
4-axis CNC Milling Machine DC8070A With Automatic Tool Changer
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135019/15产品high-accuracy-cnc-milling-machine-for-auto-parts-procesing-dc1520-1.png
High-precision CNC milling machine DC1520 for automotive parts processing
Product Parameters
Accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more
Workbench
working desk size: 610*600mm
T-slot dimensions: 5T-16-125 mm
Maximum load: 300 kg
Processing range
X/Y/Z axis travel: 600/600/260 mm
Gantry width: 700 mm
Beam to workbench: 500 mm
Spindle nose to worktable: 130-390 mm
Door opening width: 650 mm
Feed
Maximum feed speed G00: 15 m/min
Maximum processing speed G01: 10 m/min
X/Y/Z axis motor power: 850W/850W/850W
Spindle
Spindle motor power: 5.5 kW
Maximum spindle speed: 24000 rpm
Tool holder: ER25(φ3.17-φ16)
Spindle diameter: 125 mm
Common
Power supply and total capacity: 3P/380V/50Hz/12KVA
Machine weight: 4200 kg
aspect: 2200*1800*2200mm
The main components
Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 30 Hiwin, PMI/Taiwan
Ball Screw: 2810 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Parsonshal/China
air conditioner: Opt.Parsonthor/China
Pneumatic system: AirTac/Taiwan
Chip conveyor: —
Water tank capacity: 137 liters
Water pump power: 400W
Tool magazine (optional)
ATC Type: Inline type/arm type
Air traffic control capabilities: 6 pieces/20 pieces
Close
Product Details
Product Introduction
The DC6060A CNC milling machine is equipped with a BT30 spindle. It is a small double-column vertical milling machine. As a small CNC milling machine, in addition to its unquestionable precision, its rigidity is also quite outstanding.

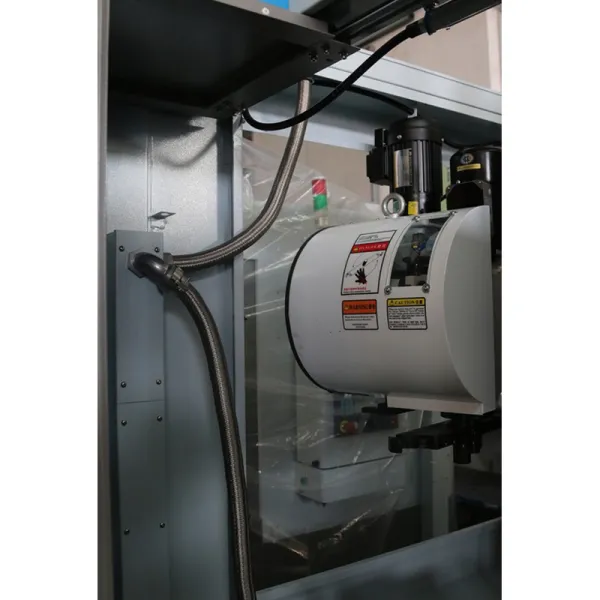

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-5.jpg
Advantages and features
1. High precision and high rigidity
2. Optional 4/5-axis rotary table
3. Optional disc-type tool changer
4. Very suitable for high-precision aluminum mold manufacturing
5. Suitable for high-precision steel molds
6. Small moving beam vertical machining center
7. Use C-grade HIWIN or PMI/Taiwan ball screw
8.P-grade HIWIN or PMI/Taiwan linear guide
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-6.jpg
Application Scenario
1. Shoe mold making
2. Plastic mold making
3. Die casting mold production
4. High-precision aluminum mold manufacturing
5. High-precision steel mold production

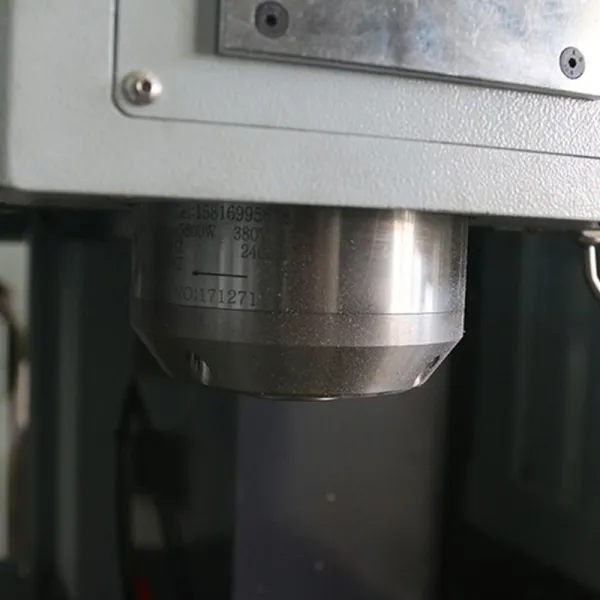

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-4.jpg
Ordering Information
Custom Request
Our products support customization!
Packing and shipping
Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
Payment method
COMM
COMM
L/C
L/C
T/T
T/T
A/P
A/P
O/A
O/A
D/P
D/P
D/A
D/A
Refunds
If there is any problem with the product, please contact us at the first time.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/安全生产标准化三级企业.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001质量管理体系认证证书%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO9001Quality%20management%20system%20certificate%202022.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/ISO45001职业健康安全管理体系认证证书.jpg
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Tel
+86-15805747758
Email
[email protected]
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Call Now
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
ER25/5.5kw/24000rpm electric spindle NBT30/5.5kw/24000-30000rpm electric spindle NBT30/7.5kw/24000-30000rpm electric spindle HSK E40/5.5-7.5kw/30000rpm electric spindle More spindles
Tool magazine type
Straight tool magazine (6 pieces) Arm type tool magazine (20 pieces) Umbrella tool magazine (10 pieces) Umbrella tool magazine (14 pieces)
